Create

Set up a new database connection, link a cloud provider, or explore with the sample database included in the DBCode extension.

  1. Launch DBCode in Visual Studio Code:

    • Open Visual Studio Code, then click the DBCode icon in the Activity Bar (typically on the left side).
    DBCode icon in VS Code
    Access DBCode through the Activity Bar icon

  2. Add a Connection:

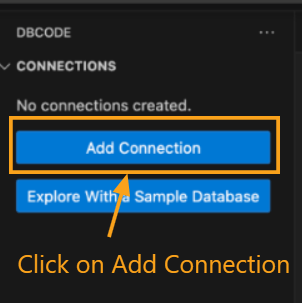

    • Click on Add Connection or the + icon in the DBCode explorer.

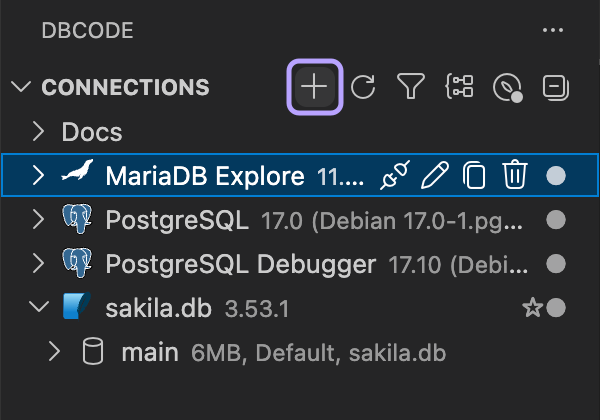

    Add connection button
    Create a new connection using the Add Connection button

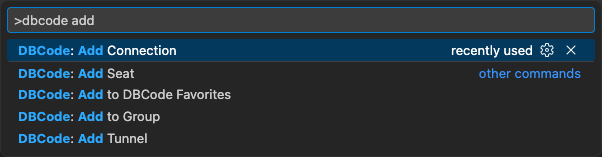

    • Alternatively, open the Command Palette (Ctrl/Cmd + Shift + P) and search for “DBCode: Add Connection.”
    Command palette with DBCode commands
    Access DBCode commands through the VS Code Command Palette

  3. Choosing Database Type:

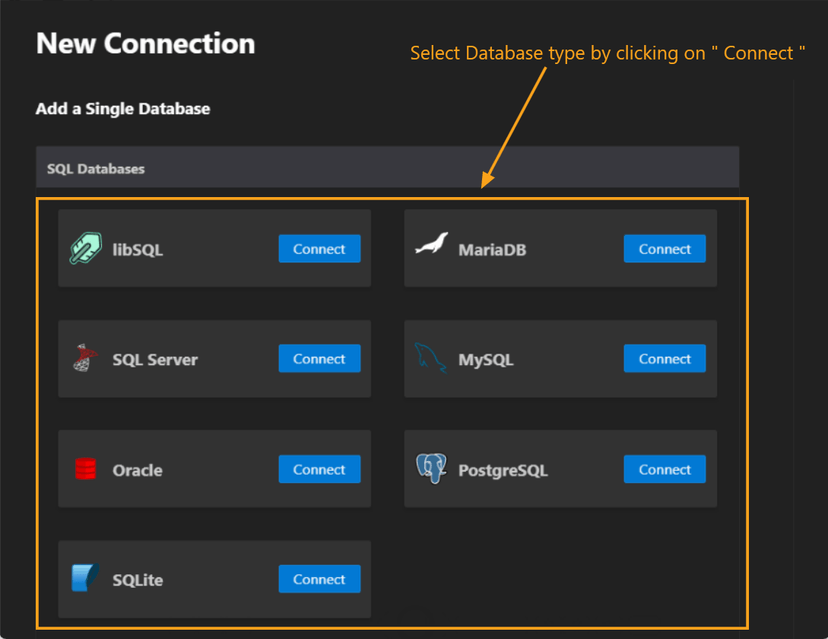

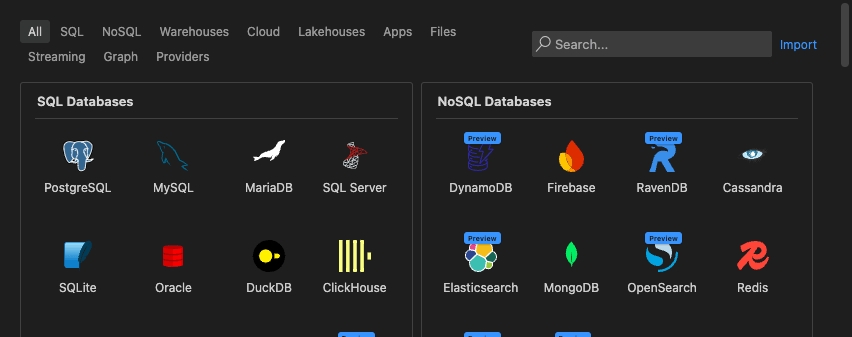

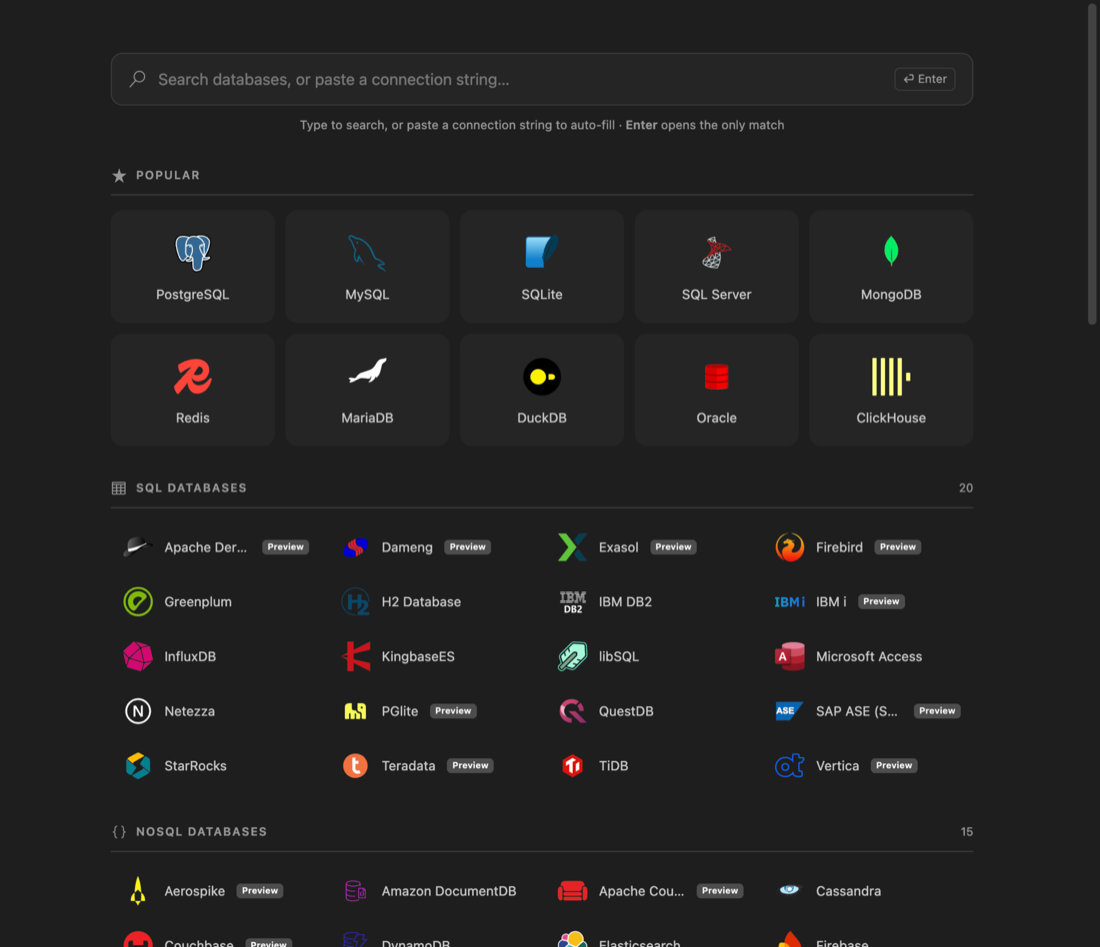

    • Choose Database type by clicking on connect button in front of each database type (e.g., MySQL, PostgreSQL, SQL Server) as shown below.
    Database type selection
    Select your database type to begin creating a connection

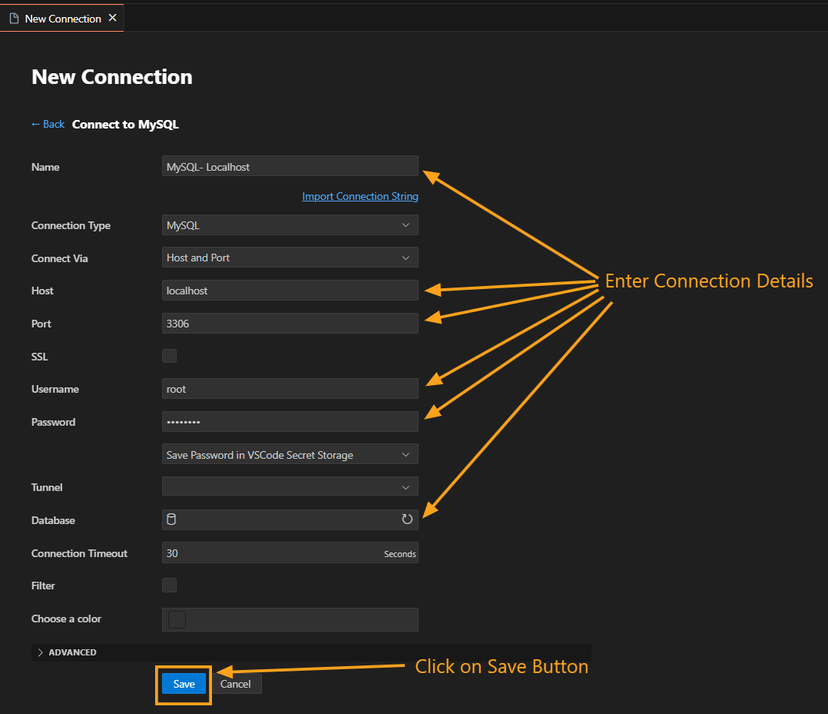

  4. Enter Connection Details: The details required will vary depending on the database type you choose, some common details are listed below:

    • Server Name: Name your connection (e.g., “My Database”).
    • Host: Provide the server’s host address (e.g., “localhost” or the server IP).
    • Port: Specify the port (e.g., 3306 for MySQL, 5432 for PostgreSQL, 1433 for SQL Server).
    • Username: Enter your database username.
    • Password: Provide the database password.
    • Database: Specify the database name you wish to access.

  5. Save the Connection:

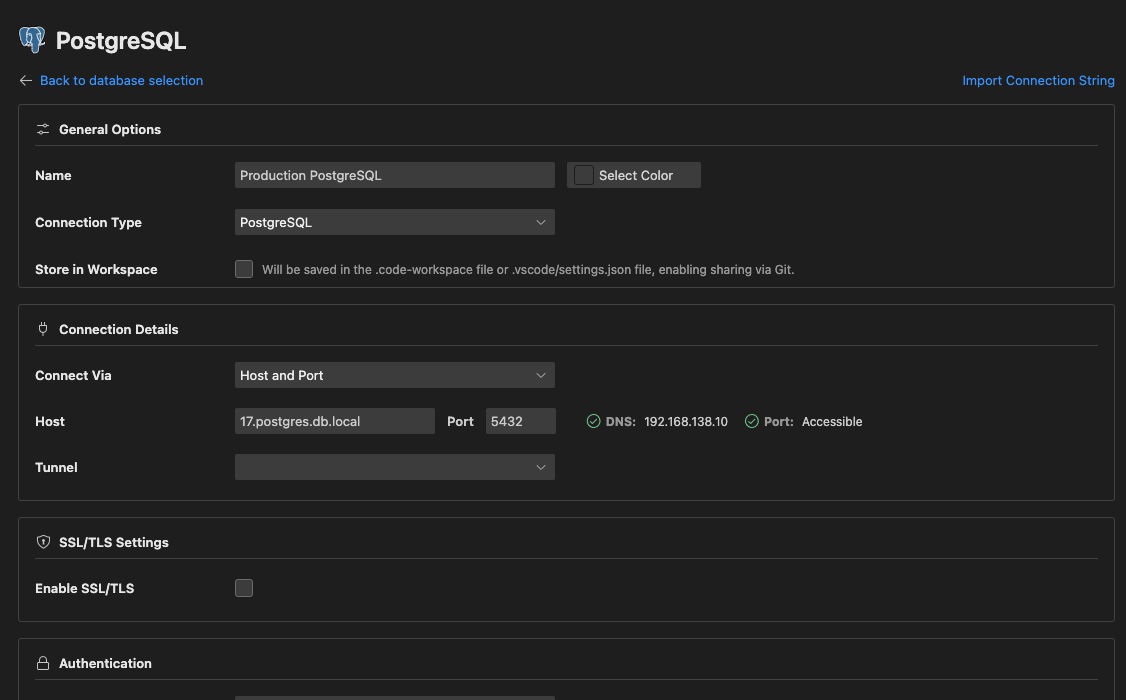

    • After entering the required details, click Save to establish the connection.
    Save connection button
    Complete the connection setup by saving your configuration

    You’re now connected and ready to explore your database directly within DBCode.

Connecting a Cloud Provider

Connecting a cloud provider allows you to access multiple databases within that provider, without the need for individual configurations. For more detailed instructions, refer to the Cloud Provider Integration Guide.

Exploring with the Sample Database

To quickly explore DBCode’s features, use the built-in sample database:

  1. Open the Sample Database:

    • In Visual Studio Code, click the DBCode icon in the Activity Bar.

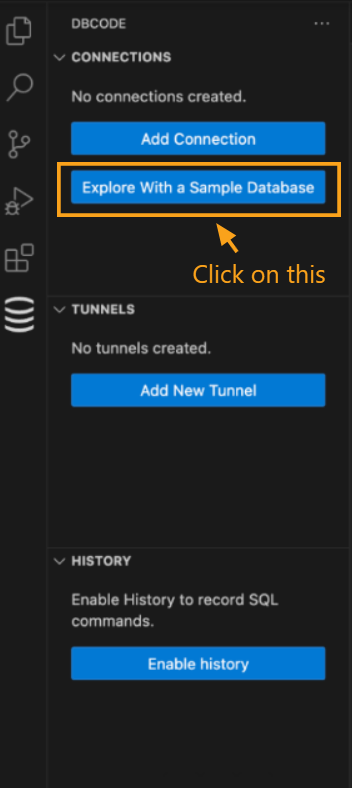

    • Select Explore with a Sample Database in the DBCode explorer or use the Command Palette (Ctrl/Cmd + Shift + P) and choose “DBCode: Explore with a Sample Database.”

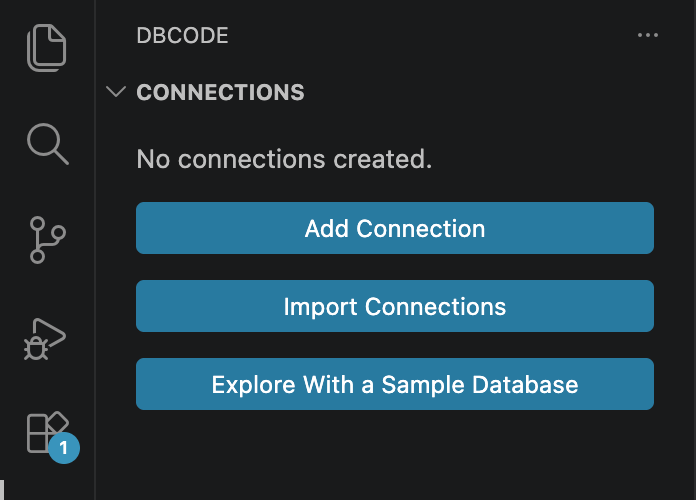

    Sample Database option
    Access the built-in sample database for quick exploration

  2. Load and Explore:

    • Select Sample Database to load it.

    The sample database is now ready to explore, allowing you to familiarize yourself with DBCode’s tools and capabilities.
